StellarMark I-series 20-60W Fiber Laser Marker
English
Laser Marking Machine

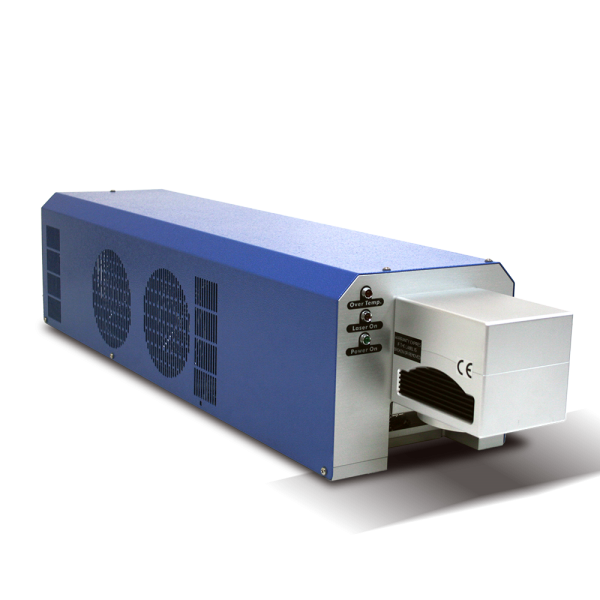

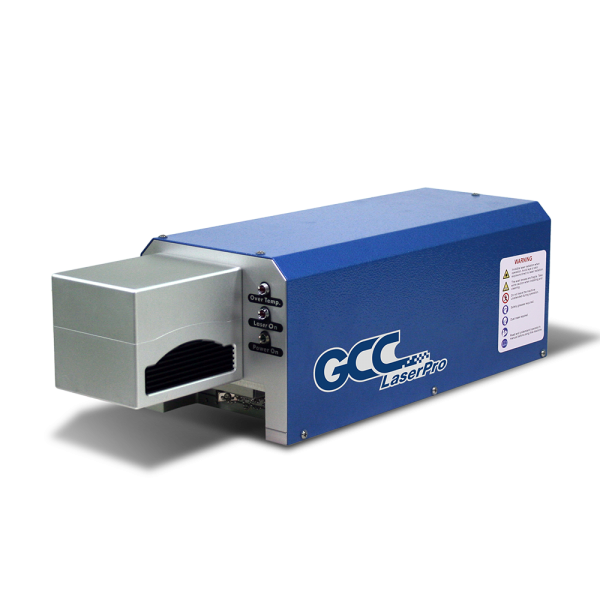

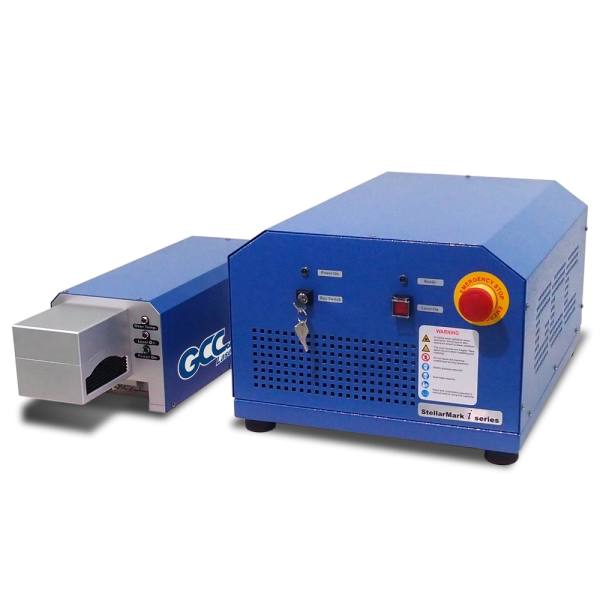

StellarMark I-series Laser Marker
StellarMark I-Series Laser Marker is a comprehensive solution that satisfies customers with diverse requirements.
1 1
Laser Marking Machine
StellarMark I-series Laser Marker
StellarMark I-Series Laser Marker is easy to install, easy to operate, designed with simple maintenance and safety considerations while providing superior output quality.
Feature
StellarMark I-series Laser Marker Feature
Superior Text-editing Function
Pyramid Focus Tool
Pyramid Focus Tool is standard feature for StellarMark IFII series. It helps you to quickly and precisely find the correct focus distance with ease.
Mark On Fly (Optional)
An optional software function that features marking of moving objects on a conveyor.
G-Mark Library (Optional)
This programmable software can be used to customize functions by VB scripts. All the commands can be received in real time from master PC and allows the position to offset, it also permits angle rotation and text contents can be varied from time to time without extra editing process.
With G-Mark Library, the workflow of the marking process can be optimized and simplified at production line.
With G-Mark Library, the workflow of the marking process can be optimized and simplified at production line.
Auto Power Compensation
Close loop design to ensure a consistent output power over a long period of time.
Preview Mode
Variable-speed, red dot pointer "preview" mode allows for accurate and easy marking positioning on the marked part.
Cost-Saving Solution
StellarMark I-Series is equipped with the state of the art technology of end pumped and fiber design, offering less downtime and lower running costs than other conventional laser.
Emergency Stop
The machine can be entirely shut down by pressing the Emergency Stop button from controller when any emergency occurs.
Key-Switch
This safety feature enables operators to keep the laser locked to avoid unauthorized use.
CE Certification
StellarMark complies with essential safety requirements set out in the European Directives.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
Error Indications
Error message appears when the laser marker works incorrectly. So operators can be informed by the message and to solve the problem immediately.
Secure Password Protection
Three-tier password security system restricts unauthorized access to the production line.

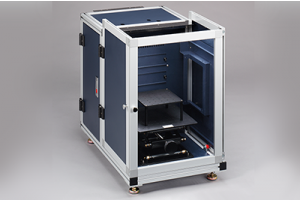

Safety door
Stellar Mark I-Series can be fastened to a rigid mounting structure to ensure the marking system and adjustable Z-axis table are parallel to each other for quality jobs.

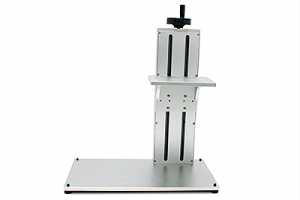

EZ Stand (i-series)
EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with 12W and 30W StellarMark models. An adjustment dial on the EZ Stand allows users to quickly and easily adjust the position of the laser marker to maintain the most suitable focal distance for the varying focal distance requirements when marking objects of different sizes.

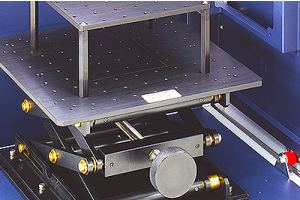

Adjustable z-axis table
Adjust the marking surface as required to ensure that it is parallel to the Stellar Mark focusing lens mount.

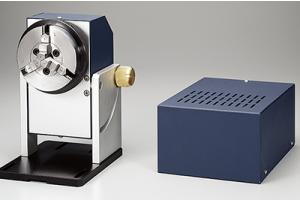

Rotary Attachment - Marker
The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

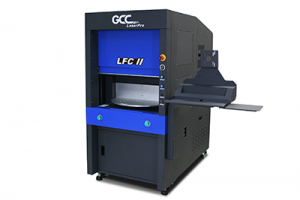

Workstation
*Not available on StellarMark C-100 model
StellarMark I-series Laser Marker Spec
| StellarMark I-series | IFIIS 20JFL | IFIIS 30JFL | IFIIS 50JFL | IFIIS 60JFL | |
|---|---|---|---|---|---|
| Laser Source | Wavelength | 1064 nm | |||
| Type | Yb-doped, MOPA | ||||
| Output Power | 20W | 30W | 50W | 60W | |
| Beam Mode | TEM00 | ||||
| Beam Quality (M²) | <1.5 | <1.5 | <1.5 | <1.8 | |
| Frequency | 1-600 kHz | 1-600 kHz | 1-600 kHz | 1-400 kHz | |
| Waveform | Single | Single | Single | Single | |
| Cooling | Air-cooled | ||||
| Max. Linear Marking Speed | 3,000 mm/s | ||||
| Max. Marking Speed | 10,000 mm/s | ||||
| Electrical Requirements | Power Supply | 100~240V, 50/60 Hz Max 15 Amp | |||
| Power Consumption | Max. 1650W | ||||
| Dimensions | Laser Head | L 497 x W 168 x H 152 mm | |||
| Control Unit | L 470 x W 360 x H 241 mm | ||||
| Laser Marker Weight | 9 kg | ||||
| Control Unit Weight | 25 kg | ||||
| Operating System | Microsoft Windows 2000 / XP / Vista(32/64 Bit) / 7(32/64 Bit) / 8(32/64 Bit) (Desktop or Laptop PCs) | ||||
| Environment | Temperature | 15℃ ~ 35℃ | |||
| Humidity | 10 ~ 80% Non condensing | ||||
| Safety | Class 4 (EN60825-1 Class 1 available with safety shield and LFC) 2006/42/EC Machinery Directive) 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive | ||||
| StellarMark IFIIS 20/30/50/60JFL Scan Lens | ||||
|---|---|---|---|---|
| Model No. | 70 | 110 | 180 | 300 |
| Working Area | 70x70 mm | 110x110 mm | 180x180 mm | 300x300 mm |
| Spot Size | 27 μm | 44 μm | 71 μm | 114 μm |
| Working Distance | 142 ± 1 mm | 220 ± 2 mm | 350 ± 2 mm | 553 ± 3 mm |
| Repeatability** | 0.03 mm | 0.03 mm | 0.04 mm | 0.06 mm |
Above specifications are subject to change without further notices. See dealer or visit http://www.GCCworld.com for more details.
All above spot size will be material dependent.
*According to theoretical calculation.
**The test is 8-hour continuous firing with power level at 30% using a 60JFL
Specifications are subject to change without prior notice.
